Heltec V3 – Dual-Core LoRa Receiver with Queue Management

Advanced LoRa receiver for Heltec V3 (ESP32-S3) with dual-core architecture – FreeRTOS inter-core communication, message queuing, CRC validation, and offline message storage with automatic retry on WiFi reconnect.

---

Overview

The Heltec V3 (ESP32-S3) is a powerful dual-core microcontroller with built-in LoRa radio and OLED display. This project demonstrates a production-ready LoRa receiver that leverages both cores:

• Core 1 (LoRa Reception) – Dedicated to receiving and validating LoRa packets.
• Core 0 (WiFi/HTTP) – Handles internet connectivity and API communication.

Key features:

• ✅ Dual-core architecture – Real-time LoRa reception on one core, network tasks on the other.
• ✅ FreeRTOS inter-core queue – Thread-safe message passing between cores.
• ✅ CRC validation – Only valid packets are processed and displayed.
• ✅ Offline message queuing – Stores messages when WiFi is disconnected.
• ✅ Automatic retry – Sends queued messages when WiFi reconnects.

---

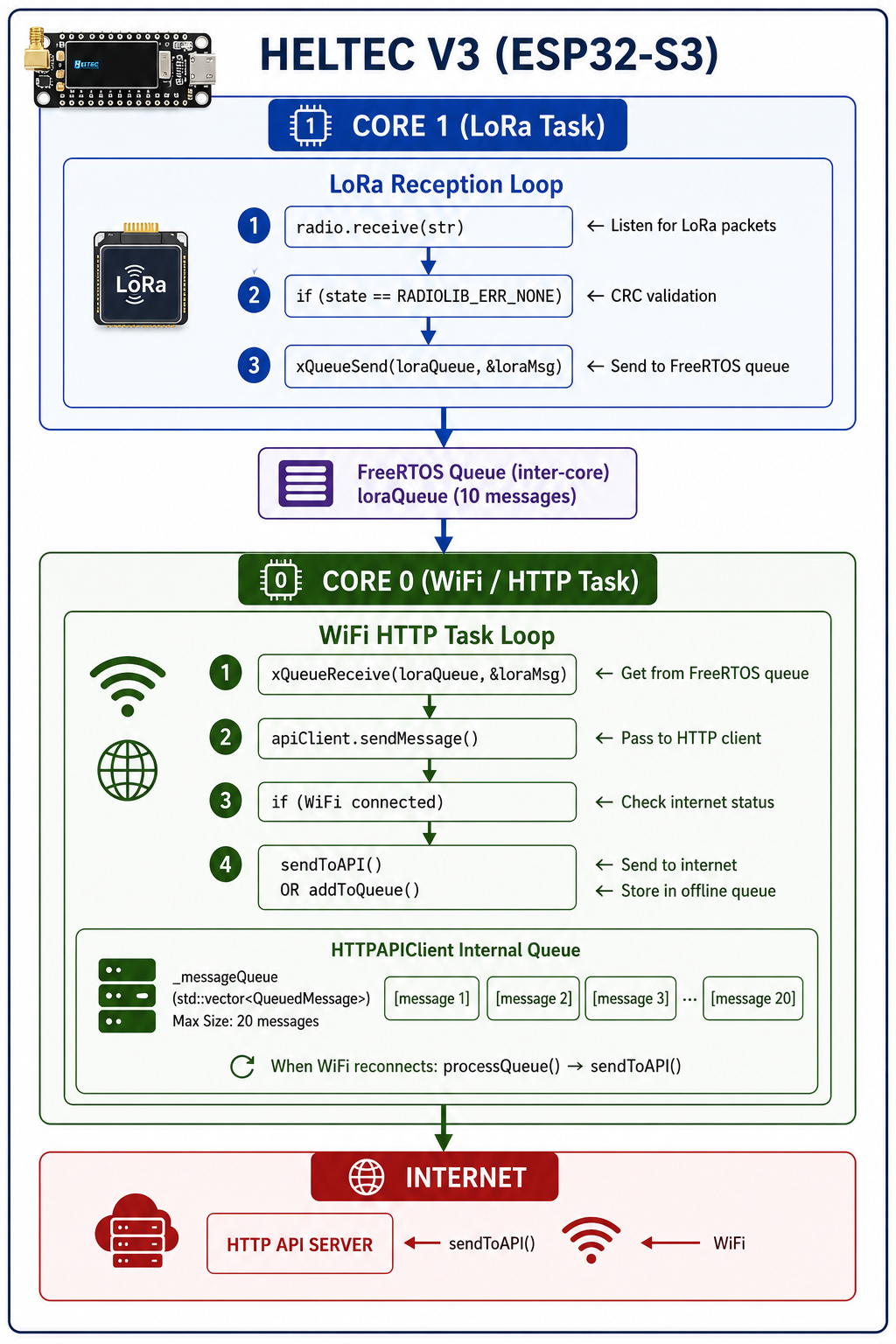

System Architecture

---

Two Queue Systems

1. Inter-Core FreeRTOS Queue (loraQueue)

Property	Value
Type	FreeRTOS QueueHandle_t
Purpose	Communication between Core 1 → Core 0
Location	Global variable in main.ino
Size	10 messages
Thread-safe	✅ Yes (FreeRTOS managed)
Access	xQueueSend() / xQueueReceive()

2. HTTP API Client Queue (_messageQueue)

Property	Value
Type	std::vector<QueuedMessage>
Purpose	Store messages when WiFi is disconnected
Location	Private member of HTTPAPIClient class
Size	20 messages
Thread-safe	❌ No (only accessed from Core 0)
Access	addToQueue() / processQueue()

---

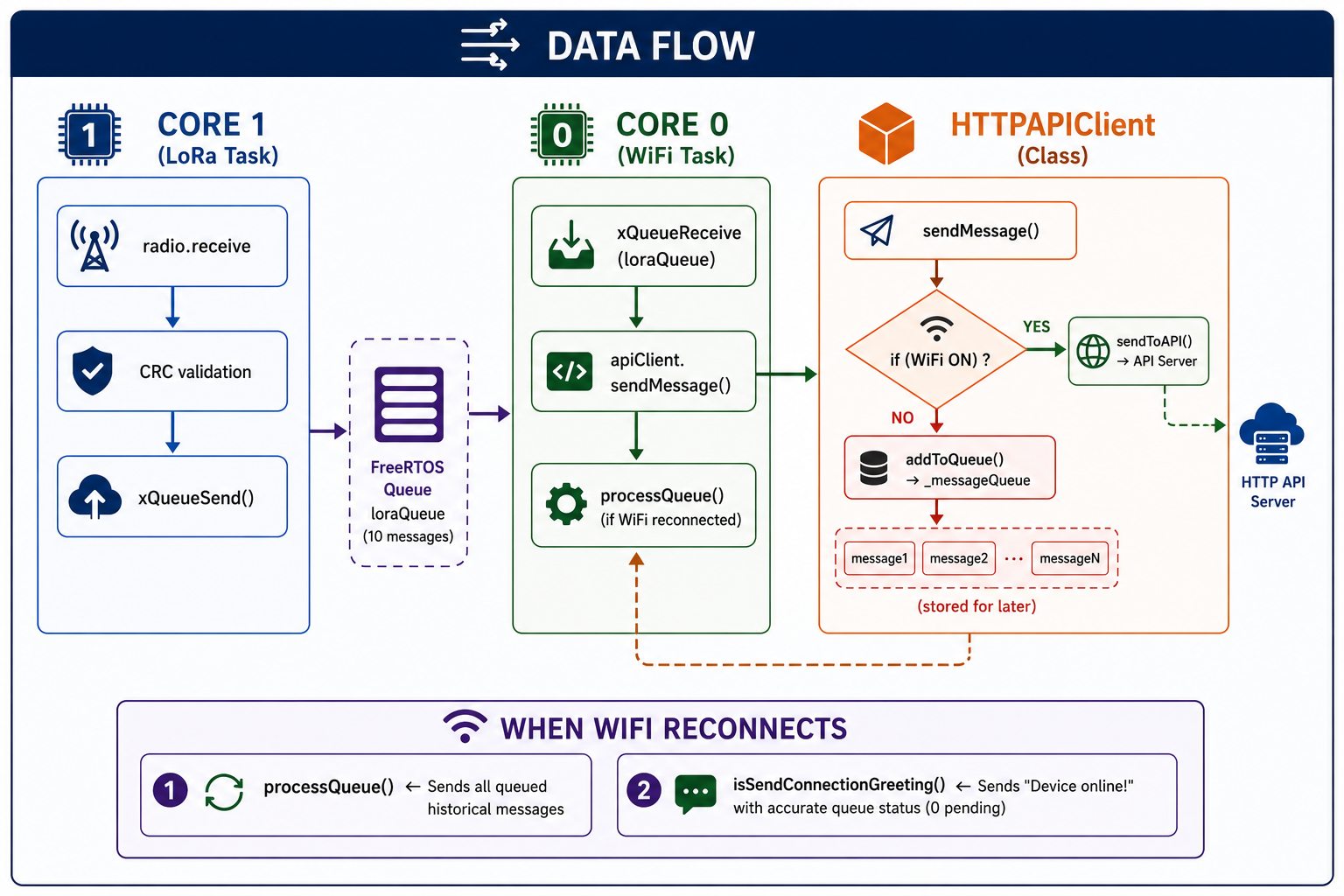

Data Flow Diagram

---

Step-by-Step Flow

When WiFi is Disconnected

LoRa Packet → Core 1 (CRC) → xQueueSend(loraQueue)
    → Core 0 (WiFi Task) → xQueueReceive(loraQueue)
    → apiClient.sendMessage()
    → isConnected() == false
    → addToQueue() → _messageQueue (stored)

When WiFi is Connected

LoRa Packet → Core 1 (CRC) → xQueueSend(loraQueue)
    → Core 0 (WiFi Task) → xQueueReceive(loraQueue)
    → apiClient.sendMessage()
    → isConnected() == true
    → sendToAPI() → Internet

When WiFi Reconnects (Process Queue First)

1. processQueue() → Sends all queued messages from _messageQueue
2. isSendConnectionGreeting() → Sends "Device online! Queue: 0 pending"

Why process queue first:

• ✅ Sends all queued historical data from when device was offline.
• ✅ Clears backlog before sending new status information.
• ✅ More important data (sensor readings) gets priority over administrative messages.
• ✅ Greeting reflects the current state after backlog is cleared.

---

Code Examples

FreeRTOS Queue Declaration (main.ino)

// Thread-safe queues for inter-core communication
QueueHandle_t loraQueue;

void setup() {
    // Create queue with 10 message slots
    loraQueue = xQueueCreate(10, sizeof(LoRaMessage));
}

// LoRa Reception Task (Core 1)
void loraReceptionTask(void *pvParameters) {
    while (1) {
        LoRaMessage loraMsg;
        loraMsg.message = str;
        loraMsg.isValid = (state == RADIOLIB_ERR_NONE);
        loraMsg.rssi = radio.getRSSI();
        loraMsg.snr = radio.getSNR();

        // Send to inter-core queue
        xQueueSend(loraQueue, &loraMsg, portMAX_DELAY);
        vTaskDelay(50 / portTICK_PERIOD_MS);
    }
}

// WiFi HTTP Task (Core 0)
void wifiHTTPTask(void *pvParameters) {
    while (1) {
        LoRaMessage loraMsg;

        // Receive from inter-core queue
        if (xQueueReceive(loraQueue, &loraMsg, 0) == pdTRUE) {
            // Pass to API client
            apiClient.sendMessage(loraMsg.message, loraMsg.isValid,
                                  loraMsg.rssi, loraMsg.snr);

            // Check queue status
            UBaseType_t queueBefore = uxQueueMessagesWaiting(loraQueue) + 1;
            UBaseType_t queueAfter = uxQueueMessagesWaiting(loraQueue);
        }

        // Process offline queue
        apiClient.processQueue();

        vTaskDelay(100 / portTICK_PERIOD_MS);
    }
}

HTTP API Client Queue (HTTPAPIClient.cpp)

bool HTTPAPIClient::sendMessage(const String& message, bool isValid,
                                 float rssi, float snr) {
    if (!isConnected()) {
        // WiFi OFF: Store in internal API client queue
        Serial.println("📡 WiFi disconnected - queuing valid message");
        if (isValid) {
            return addToQueue(message, isValid, rssi, snr);
        }
        return false;
    } else {
        // WiFi ON: Send immediately
        return sendToAPI(message, isValid, rssi, snr);
    }
}

bool HTTPAPIClient::addToQueue(const String& message, bool isValid,
                                float rssi, float snr) {
    if (_messageQueue.size() >= _maxQueueSize) {
        Serial.println("⚠️ Message queue full, removing oldest");
        _messageQueue.erase(_messageQueue.begin());
    }

    QueuedMessage qMsg;
    qMsg.message = message;
    qMsg.isValid = isValid;
    qMsg.rssi = rssi;
    qMsg.snr = snr;
    qMsg.timestamp = millis();

    _messageQueue.push_back(qMsg);
    return true;
}

void HTTPAPIClient::processQueue() {
    if (!isConnected()) {
        return;  // Wait for WiFi to reconnect
    }

    if (_messageQueue.empty()) {
        return;  // No queued messages
    }

    Serial.printf("📤 Processing %d queued messages...\n", _messageQueue.size());

    for (auto &msg : _messageQueue) {
        sendToAPI(msg.message, msg.isValid, msg.rssi, msg.snr);
        delay(100);  // Small delay between messages
    }

    _messageQueue.clear();
}

HTTPAPIClient.h – Queue Declaration

class HTTPAPIClient {
private:
    struct QueuedMessage {
        String message;
        bool isValid;
        float rssi;
        float snr;
        unsigned long timestamp;
    };

    std::vector<QueuedMessage> _messageQueue;
    const int _maxQueueSize = 20;
};

---

Key Points

Concept	Explanation
No Loopback	Messages never go back to loraQueue from the API client.
Two-Stage Queuing	Stage 1: loraQueue (inter-core communication). Stage 2: _messageQueue (offline storage).
Different Purposes	loraQueue: Real-time message passing between cores. _messageQueue: Persistent storage when offline.
Thread Safety	loraQueue is thread-safe (FreeRTOS managed). _messageQueue is only accessed from Core 0.
Priority	Process queue before sending greeting to show accurate queue status.

---

Key Achievements

• ✅ Dual-core LoRa reception – Real-time packet processing on dedicated core.
• ✅ FreeRTOS inter-core queue – Thread-safe message passing.
• ✅ CRC validation – Only valid packets are processed.
• ✅ Offline message storage – Messages stored when WiFi is disconnected.
• ✅ Automatic retry – Queued messages sent when WiFi reconnects.
• ✅ Accurate status reporting – Process queue before connection greeting.

---

Technology Stack

Category	Technology
MCU	ESP32-S3 (Heltec V3)
LoRa	SX1276 (RadioLib)
RTOS	FreeRTOS (ESP-IDF)
Queues	FreeRTOS Queue, std::vector
WiFi	ESP32 WiFi library
HTTP	HTTPClient (Arduino)
Display	SSD1306 (OLED)

---

Related Projects

• Embedded Systems Engineering – Main embedded systems page.
• Heltec V3 LoRa Receiver – Base LoRa receiver.

---

This dual-core LoRa receiver is part of my broader Embedded Systems Engineering practice. For a detailed technical walkthrough or custom firmware design, feel free to reach out.
