Embedded Systems – Radxa Zero 3W Setup & Docker Environment

Complete setup guide for the Radxa Zero 3W (Rockchip RK3566, 8GB RAM) – OS installation, SSH configuration, Docker and Docker Compose installation, and troubleshooting for Debian Bookworm.

---

Overview

The Radxa Zero 3W is a compact, powerful single-board computer based on the Rockchip RK3566 SoC, featuring:

• Rockchip RK3566 – Quad-core ARM Cortex-A55.
• 8GB RAM – Ample memory for containerised applications.
• On-board Wi-Fi & Bluetooth – Built-in wireless connectivity.
• Debian Bookworm – Official OS support.
• Docker-ready – Perfect for containerised development.

This page documents the complete setup process for the Radxa Zero 3W, including OS installation, SSH configuration, and Docker/Docker Compose installation with full troubleshooting.

---

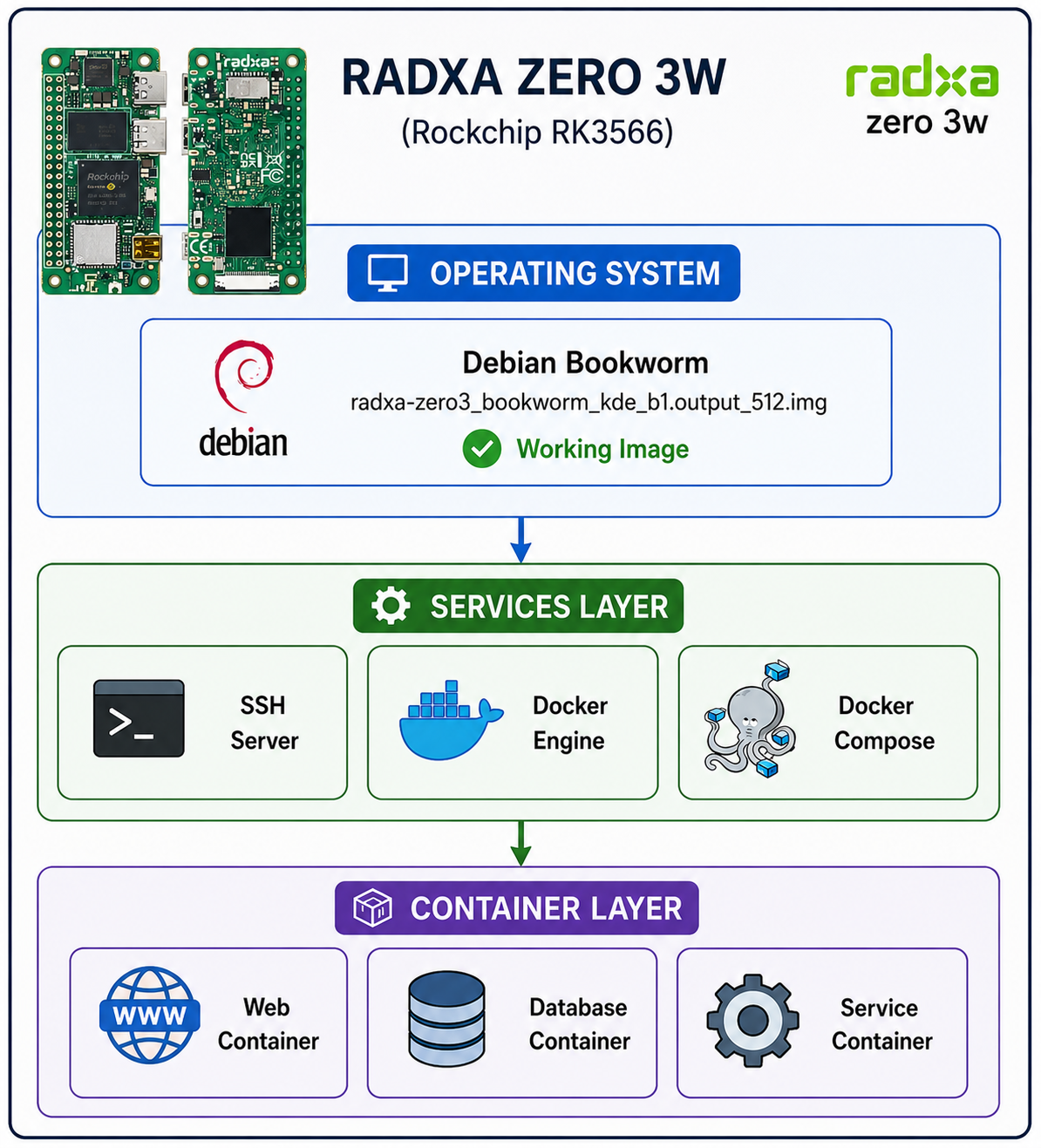

Architecture

---

Getting Started

Hardware Specifications

Component	Specification
SoC	Rockchip RK3566 (Quad-core ARM Cortex-A55)
RAM	8GB DDR4
Storage	microSD card slot (eMMC optional)
Networking	Wi-Fi 5 + Bluetooth 5.0
USB	USB 2.0 Type-C (OTG) + USB 3.0 Type-A
Video	Micro HDMI 2.0
GPIO	40-pin header

✅ Working OS Image

Image	Status
radxa-zero3_bookworm_kde_b1.output_512.img.xz	✅ Fully working
Username: radxa
Password: radxa

Download: Radxa Zero 3 Official Downloads

Flashing the Image

Use balenaEtcher or Raspberry Pi Imager to flash the .img.xz file to a microSD card. The .xz format can be written directly – no need to extract first.

---

Initial Setup

1. Boot and Login

Insert the SD card, power on, and log in:

Username: radxa
Password: radxa

2. Enable SSH

SSH is disabled by default. Enable it:

sudo systemctl start ssh
sudo systemctl enable --now ssh

Now you can connect remotely:

ssh radxa@192.168.1.xxx

3. Set a Static IP (Optional)

# Edit network configuration
sudo nano /etc/network/interfaces

# Or use nmcli (NetworkManager)
nmcli con mod "Wired connection 1" ipv4.addresses 192.168.1.100/24
nmcli con mod "Wired connection 1" ipv4.gateway 192.168.1.1
nmcli con mod "Wired connection 1" ipv4.dns "8.8.8.8 4.4.4.4"
nmcli con mod "Wired connection 1" ipv4.method manual
nmcli con down "Wired connection 1" && nmcli con up "Wired connection 1"

---

Docker & Docker Compose Installation

Step 1: Install Prerequisites

sudo apt update
sudo apt install -y ca-certificates curl gnupg

Step 2: Add Docker’s Official GPG Key

sudo install -m 0755 -d /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/debian/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo chmod a+r /etc/apt/keyrings/docker.gpg

⚠️ Important: Use /linux/debian/ (not /linux/ubuntu/) because Radxa Zero 3 runs Debian Bookworm.

Step 3: Add Docker’s Official Repository

echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/debian bookworm stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

Step 4: Install Docker and Docker Compose

sudo apt update
sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

Step 5: Add User to Docker Group

sudo usermod -aG docker $USER

⚠️ Important: You must log out and log back in (or reboot) for this change to take effect.

Step 6: Verify Installation

docker --version
docker compose version

Expected output:

Docker version 24.0.7, build ...
Docker Compose version v2.24.6

Step 7: Test with Hello World

docker run hello-world

---

Troubleshooting: Docker Group Permission

Issue: Permission denied When Running Docker

Symptom:

docker: permission denied

Cause: The user is not in the docker group, or the group change hasn’t taken effect.

Solutions:

Solution	Command
Reboot	sudo reboot
Apply group change	newgrp docker
Re-login via SSH	exit then SSH back in
Temporary workaround	sudo docker run hello-world

Verify Group Membership

groups

You should see docker in the output.

If docker is not listed:

sudo usermod -aG docker $USER

Why This Happens

The docker group is created when Docker is installed. The usermod command adds your user to that group, but existing sessions don’t automatically pick up group changes. A new login session is required for the group membership to be recognized by the Docker daemon.

---

⚙️ Docker Compose Syntax: Important Note

Command	Status	Use
docker compose (with space)	✅ Modern v2	The plugin installed by docker-compose-plugin
docker-compose (with hyphen)	❌ Deprecated v1	Not installed by default

Always use docker compose (with a space) for your Compose commands.

---

Example: First docker-compose.yml

Create a file called docker-compose.yml:

version: '3.8'

services:
  web:
    image: php:8.2-apache
    ports:
      - "80:80"
    volumes:
      - ./app:/var/www/html

  mysql:
    image: mysql:8.0
    environment:
      MYSQL_ROOT_PASSWORD: mysecret
      MYSQL_DATABASE: mydb
    volumes:
      - mysql-data:/var/lib/mysql

volumes:
  mysql-data:

Start the stack:

docker compose up -d

Check status:

docker compose ps

View logs:

docker compose logs

Stop the stack:

docker compose down

---

Useful Docker Commands

Command	Description
docker ps	List running containers
docker ps -a	List all containers (including stopped)
docker images	List downloaded images
docker pull <image>	Download an image
docker exec -it <container> bash	Get a shell inside a container
docker logs <container>	View container logs
docker stop <container>	Stop a container
docker rm <container>	Remove a container
docker rmi <image>	Remove an image
docker system prune	Clean up unused resources

---

Key Achievements

• ✅ Identified working OS image for Radxa Zero 3W.
• ✅ Enabled SSH for remote access.
• ✅ Successfully installed Docker on Debian Bookworm.
• ✅ Successfully installed Docker Compose (v2 plugin).
• ✅ Resolved Docker group permission issues.
• ✅ Created reusable guide for future deployments.

---

Troubleshooting Reference

Problem	Solution
docker: 'compose' is not a docker command	Compose plugin not installed. Re-run Step 4.
Unable to locate package docker-compose-plugin	Wrong repository (Ubuntu instead of Debian). Check /etc/apt/sources.list.d/docker.list and ensure URL is .../linux/debian/.
Permission denied when running Docker	User not in docker group. Reboot or run newgrp docker.
SSH not responding	Ensure SSH is enabled: sudo systemctl enable --now ssh.
Wi-Fi not connecting	Use nmcli to configure Wi-Fi: nmcli dev wifi connect "SSID" password "PASSWORD".

---

Technology Stack

Category	Technology
Board	Radxa Zero 3W
SoC	Rockchip RK3566
OS	Debian Bookworm
Container Engine	Docker CE
Orchestration	Docker Compose v2
Remote Access	SSH

---
